Standard joint
HOME>>LAB GLASSWARE>>Standard joint

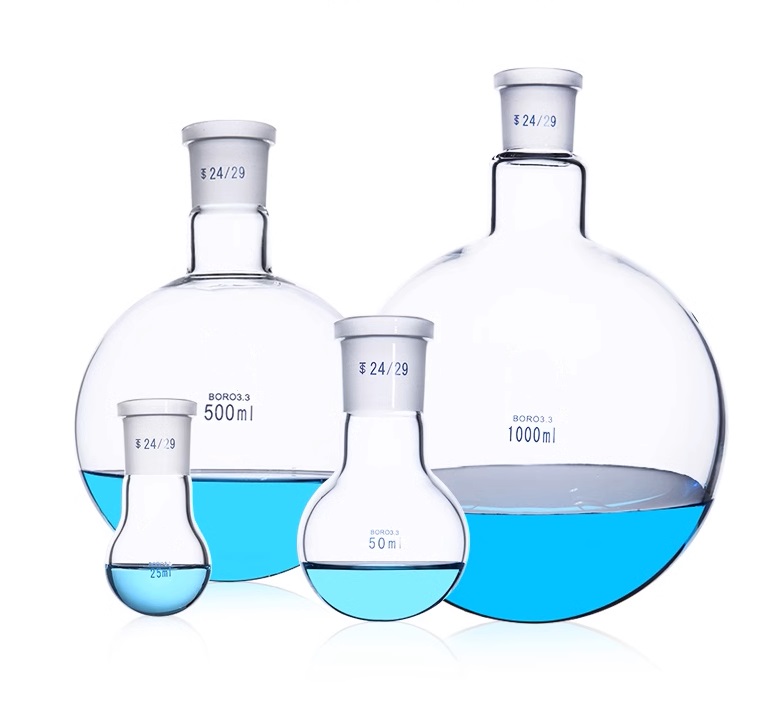

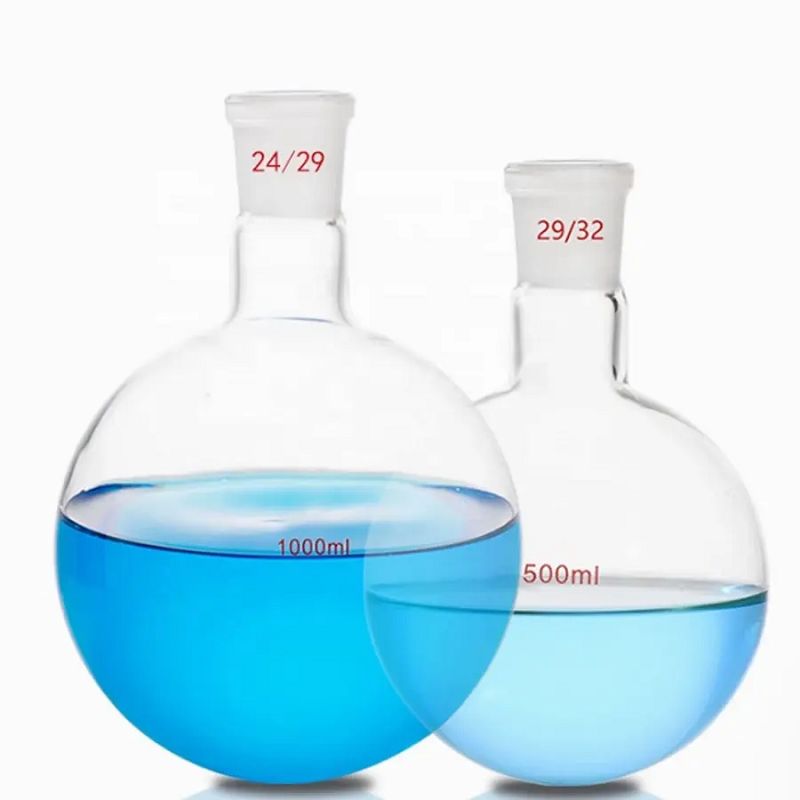

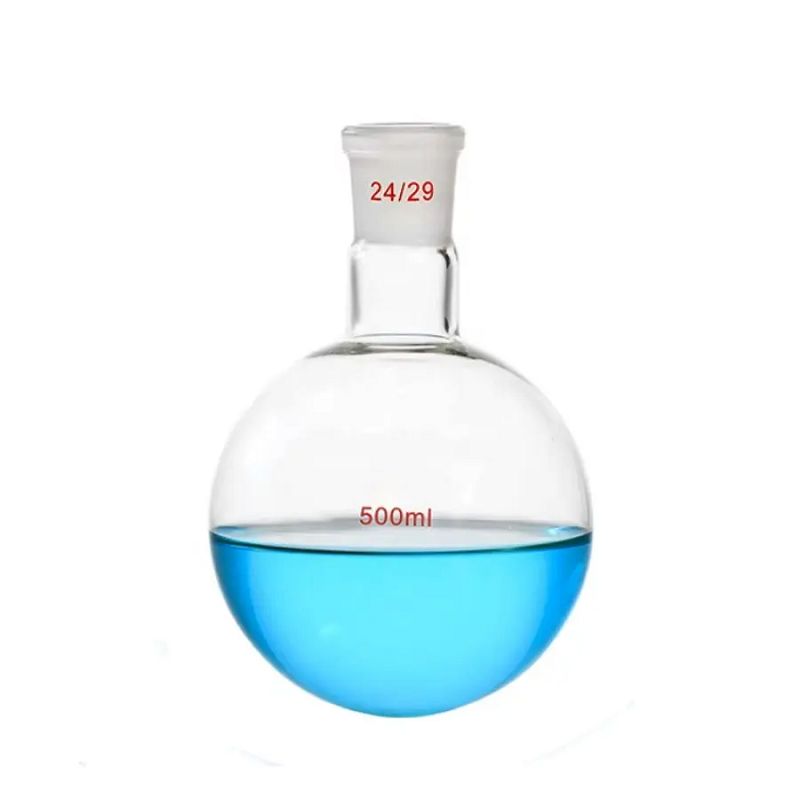

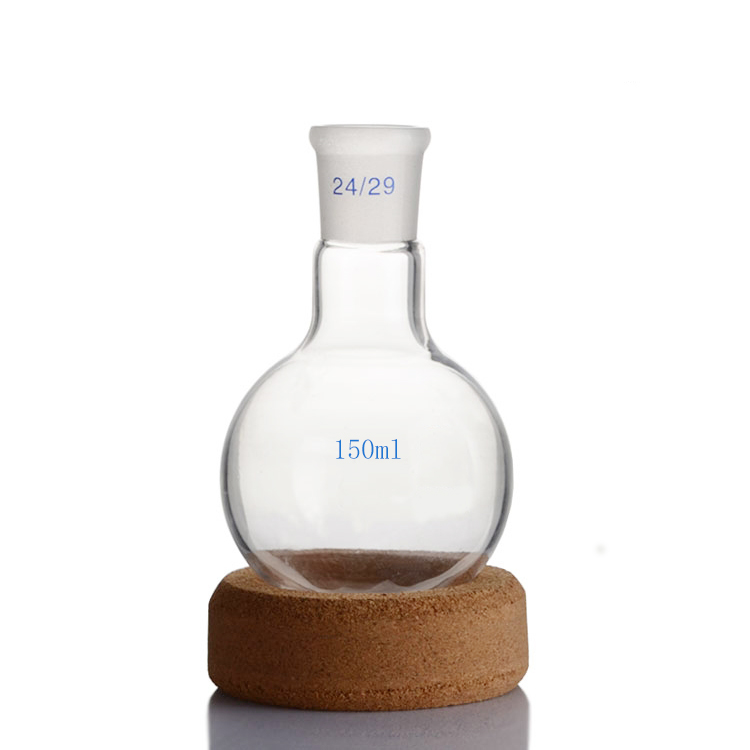

NO.5001 Boiling flask round bottom with short neck and standard ground mouth
Product features:Boiling flask round bottom (short neck, standard ground mouth) is made of high borosilicate glass, which has the characteristics of high temperature resistance, corrosion resistance and high transparency. It can withstand higher temperature changes without cracking and is suitable for various heating operations. At the same time, it has strong tolerance to chemical reagents and is not easy to react with reactants, ensuring the accuracy of experimental results. Good transparency allows the experimenter to clearly observe the reaction process in the flask, includes the color change of the solution, the formation of precipitation, etc., which helps to timely grasp the progress of the experiment.

tiandi@tiandicn.com  /  lab-glassware@tiandicn.com

+86-515-88631536  /  +86 13912566435

+ 86 19551521639

Tiandilabware

Product features

Boiling flask round bottom (short neck, standard ground mouth) is made of high borosilicate glass, which has the characteristics of high temperature resistance, corrosion resistance and high transparency. It can withstand higher temperature changes without cracking and is suitable for various heating operations. At the same time, it has strong tolerance to chemical reagents and is not easy to react with reactants, ensuring the accuracy of experimental results. Good transparency allows the experimenter to clearly observe the reaction process in the flask, includes the color change of the solution, the formation of precipitation, etc., which helps to timely grasp the progress of the experiment.

The short neck structure makes the heat transfer of the flask more concentrated during the heating process, and the heating speed is relatively fast, saves experimental time. At the same time, the short neck also reduces the heat dissipation area of the neck, helpes maintain a stable temperature in the flask and facilitating the reaction. The standard ground openings are precisely sized to ensure good connectivity with other glassware. It can be easily combined with other instruments such as condensation tubes, separatory funnels, and thermometers to build various experimental devices to meet different experimental needs.

Boiling flask round bottom has a tight connection and good sealing, which can effectively prevent the leakage of gas or liquid during the experiment and ensure the safety and accuracy of the experiment; the standard ground connection method is stable and reliable, and has undergone strict quality testing to ensure that it is There will be no loosening or falling off during the experiment.

The high borosilicate glass material of the round bottom flask has low expansion rate, high temperature resistance, acid and alkali resistance, high strength, high hardness, high light transmittance, and high chemical stability; fine workmanship, smooth surface, rounded bottle body; good light transmittance, high transparency, beautiful appearance; frosted mouth, fine frosting, good sealing.


Product details

We can produce different round bottom flasks as per customer’s requirements.We can also print your logo on the round bottom flasks if the quantity is large,please feel free to contact us online.

Product specifications

Item NO.Capacity
     (ml)
Ground mouthO.D.of bulb
     (mm)
Height
     (mm)
PCS/CTN
5001/5/10510/192756600
5001/5/14514/232760600
5001/5/101010/193366600
5001/10/141014/233368600
5001/10/191019/263370600
5001/25/102510/194170576
5001/25/142514/234175576
5001/25/192519/264179576
5001/50/145014/235388192
5001/50/195019/265394192
5001/50/245024/295397192
5001/50/295029/3253105192
5001/100/1410014/2365100192
5001/100/1910019/2665106192
5001/100/2410024/2965109192
5001/100/2910029/3265117192
5001/150/1915019/2676117192
5001/150/2415024/2976120192
5001/250/1925019/268813472
5001/250/2425024/298813972
5001/250/2925029/328814572
5001/500/1950019/2611015848
5001/500/2450024/2911016148
5001/500/2950029/3211016748
5001/500/3450034/3511017048
5001/1000/19100019/2614018824
5001/1000/24100024/2914019624
5001/1000/29100029/3214019924
5001/1000/34100034/3514020224
5001/2000/24200024/2917523112
5001/2000/29200029/3217523412
5001/2000/34200034/3517523712
5001/3000/29300029/321992818
5001/3000/34300034/351992848
5001/3000/40300040/381992878
5001/5000/40500040/382353334
5001/5000/50500050/422353374
5001/10000/501000050/422974102
5001/10000/601000060/462974142

Product applications

Boiling flask round bottom (short neck, standard ground mouth) has wide applicability: it can be used for various experimental operations such as chemical synthesis, distillation, reflux, etc. Whether it is an organic synthesis experiment or an inorganic chemistry experiment, the round bottom flask (short neck, standard ground mouth) can play an important role.

In the fields of pharmaceuticals, chemical industry, scientific research, etc., this flask is one of the commonly used experimental instruments and is suitable for experiments and production processes of various scales.


Previous:
Next:NO.5002 Boiling flask round bottom with long neck and standard ground mouth
