Standard joint
HOME>>LAB GLASSWARE>>Standard joint

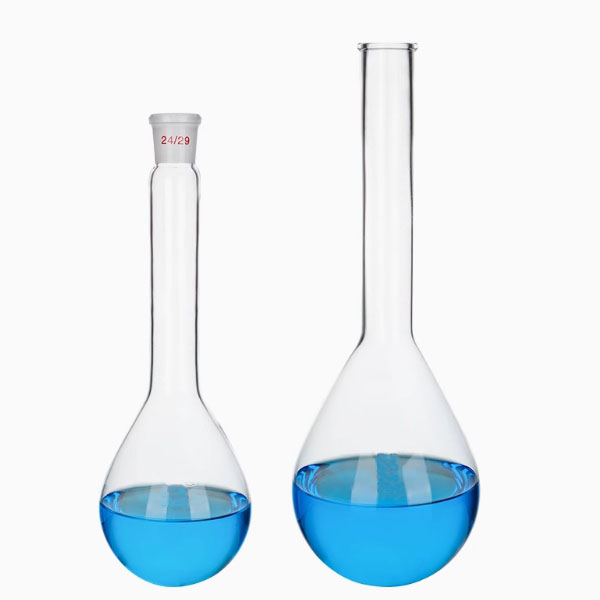

NO.5012 Eggplant flask with long neck and standard ground mouth
Product features:Eggplant flask with long neck and standard ground mouth is a common laboratory glass instrument, usually made of high borosilicate glass. Similar to the short-necked eggplant flask, it has an eggplant-shaped body, a sloped shoulder, and a large bottom volume. This shape is conducive to fully mixing the reactants during the reaction, and is convenient for scraping solid or thick substances in the bottle. At the same time, it can effectively avoid boiling in operations such as vacuum distillation. The neck is long and thin. Compared with the short-necked eggplant flask, the long neck can provide a longer steam path, which is conducive to the cooling and reflux of the steam. In operations such as distillation, the steam can be fully cooled, the distillation efficiency is improved, and the volatilization loss of the substance is reduced.In addition, the long neck is also convenient for connecting other instruments, such as condensers, fractionation columns, etc., making it easy to build complex experimental devices.

tiandi@tiandicn.com  /  lab-glassware@tiandicn.com

+86-515-88631536  /  +86 13912566435

+ 86 19551521639

Tiandilabware

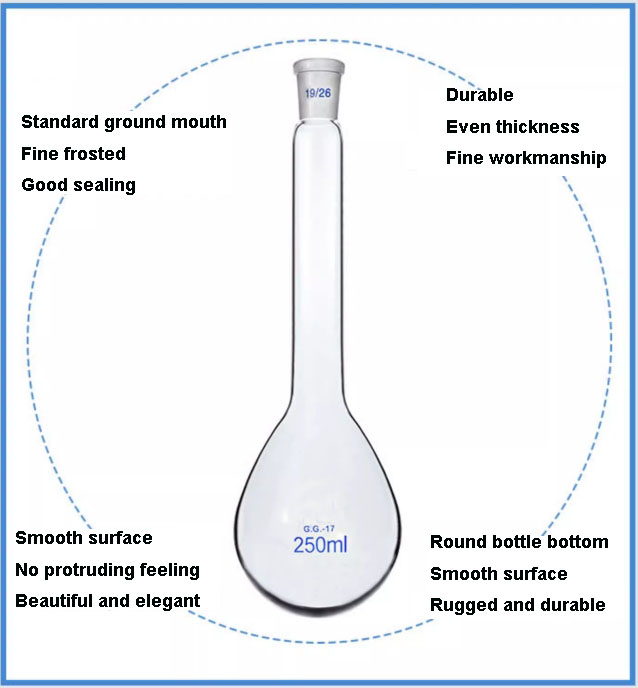

Product features

Eggplant flask with long neck and standard ground mouth is a common laboratory glass instrument, usually made of high borosilicate glass. Similar to the short-necked eggplant flask, it has an eggplant-shaped body, a sloped shoulder, and a large bottom volume. This shape is conducive to fully mixing the reactants during the reaction, and is convenient for scraping solid or thick substances in the bottle. At the same time, it can effectively avoid boiling in operations such as vacuum distillation. The neck is long and thin. Compared with the short-necked eggplant flask, the long neck can provide a longer steam path, which is conducive to the cooling and reflux of the steam. In operations such as distillation, the steam can be fully cooled, the distillation efficiency is improved, and the volatilization loss of the substance is reduced.In addition, the long neck is also convenient for connecting other instruments, such as condensers, fractionation columns, etc., making it easy to build complex experimental devices. When conducting some experiments that require precise control of temperature, reactant addition or reaction progress, the long neck can be used as a "buffer area". The bottle mouth has a standard ground mouth interface with a variety of sizes. It can be tightly connected with other glass instruments with the same standard ground mouth to ensure the sealing of the device, making it convenient for experimenters to assemble various experimental devices according to different experimental needs.

1 英.jpg

Product details

We can produce different flasks as per customer’s requirements.We can also print your logo on the flasks if the quantity is large,please feel free to contact us online.

Product specifications

Item NO.Capacity
     (ml)
Ground mouthO.D.of bulb
     (mm)
Height
     (mm)
5012/25/142514/2340140
5012/50/145014/2352190
5012/50/195019/2652190
5012/100/1910019/2660220
5012/100/2410024/2960220
5012/250/1925019/2682270
5012/250/2425024/2982270
5012/500/2450024/29107310
5012/500/2950029/32107310
5012/1000/29100029/32130370

Product applications

(1) In distillation and fractionation, it can be used for conventional distillation, vacuum distillation, and fractionation.

(2) In organic synthesis reactions, it can be used as a reaction vessel and can also be used for reflux reactions.

(3) In other applications, it can be used in gas preparation experiments and as a buffer container.

1 (2)英.jpg
