Cat. No.:1177-01 |
|
Bottom dia.:60mm |
|
Cover dia. :65mm |
|
Height:15mm | |
|
|
|
|
|
|
Cat. No.:1177-02 |
|
Bottom dia.:75mm |
|
Cover dia. :82mm |
|
Height:15mm | |
|
|
|
|
|
|
Cat. No.:1177-03 |
|
Bottom dia.:90mm |
|
Cover dia. :98mm |
|
Height:18mm | |
|
|
|
|
|
|
Cat. No.:1177-04 |
|
Bottom dia.:100mm |
|
Cover dia. :107mm |
|
Height:20mm | |
|
|
|
|
|
|
Cat. No.:1177-05 |
|
Bottom dia.:120mm |
|
Cover dia. :130mm |
|
Height:25mm | |
|
|
|
|
|
|
Cat. No.:1177-06 |
|
Bottom dia.:150mm |
|
Cover dia. :160mm |
|
Height:30mm | |
|
|
|
|
|
|

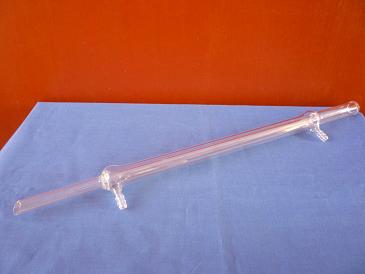

Cat. No.:1213-01 |
|
Length of jacket : 200mm |
|
O.D. of upper tube:18mm |
|
Cooling area :0.7dm2 |
|
Length:350mm | |
|
|
|
|
|
|
|
Cat. No.:1213-02 |
|
Length of jacket : 250mm |
|
O.D. of upper tube:18mm |
|
Cooling area :1.0dm2 |
|
Length:420mm | |
|
|
|
|
|
|
Cat. No.:1213-03 |
|
Length of jacket :300 mm |
|
O.D. of upper tube:20mm |
|
Cooling area :1.1dm2 |
|
Length:480mm | |
|
|
|
|
|
|
Cat. No.:1213-04 |
|
Length of jacket : 400mm |
|
O.D. of upper tube:22mm |
|
Cooling area :1.6dm2 |
|
Length:590mm | |
|
|
|
|
|
|
Cat. No.:1213-05 |
|
Length of jacket : 500mm |
|
O.D. of upper tube:24mm |
|
Cooling area :2.2dm2 |
|
Length:710mm | |
|
|
|
|
|
|
Cat. No.:1213-06 |
|
Length of jacket : 600mm |
|
O.D. of upper tube:24mm |
|
Cooling area :2.8dm2 |
|
Length:810mm | |
|
|
|
|
|
|
Cat. No.:1213-07 |
|
Length of jacket :800 mm |
|
O.D. of upper tube:28mm |
|
Cooling area :4.3dm2 |
|
Length:1050mm | |
|
|
|
|
|
|
Cat. No.:1213-08 |
|
Length of jacket :1000 mm |
|
O.D. of upper tube:28mm |
|
Cooling area :5.7dm2 |
|
Length:1250mm | |
|
|
|
|
|
|
Cat. No.:1214-01 |
|
Length of jacket :200mm |
|
O.D. of upper tube:18mm |
|
Cooling area : 1.0dm2 |
|
Length:350mm | |
|
|
|
|
|
|
Cat. No.:1214-02 |
|
Length of jacket :250mm |
|
O.D. of upper tube:18mm |
|
Cooling area : 1.5dm2 |
|
Length:420mm | |
|
|
|
