Product features

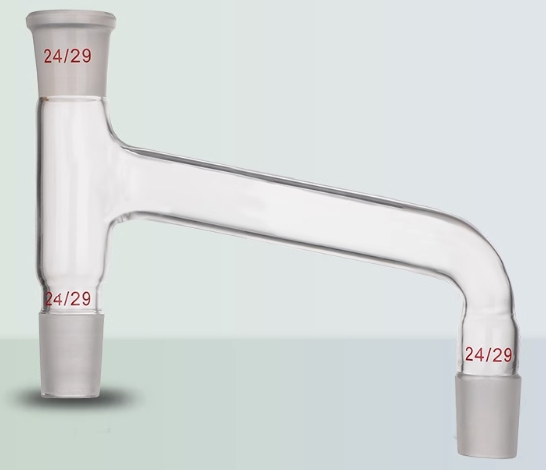

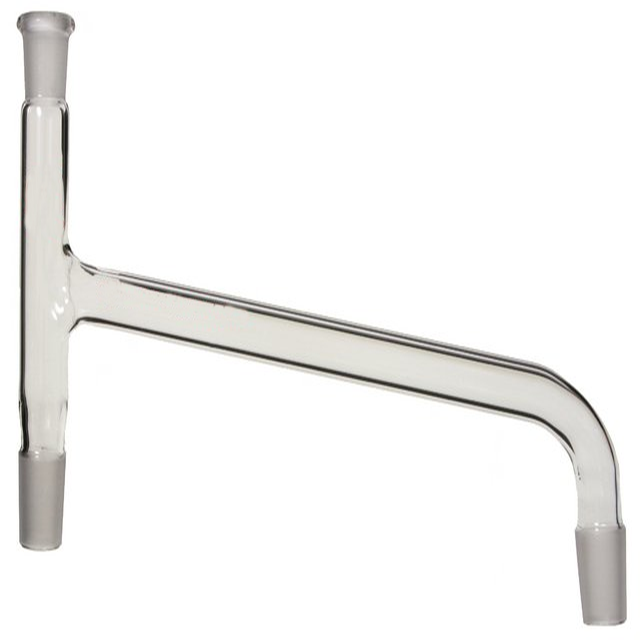

Distilling head bent with standard ground mouth is a standard ground glass instrument used in the laboratory. It is mainly used to connect other glass instruments for distillation operations. Standard ground glass instruments have good sealing performance and are especially suitable for certain volatile and toxic substances, or organic substances that are not suitable for contact with rubber stoppers. Suitable for various laboratory operations, especially for connecting flasks and distillation tubes in organic synthesis. The distilling head usually has a downward slope design of , which helps the liquid flow into the distillation tube smoothly and improves distillation efficiency. Before use, the grinding mouth should be sealed with Vaseline to achieve the best sealing effect.

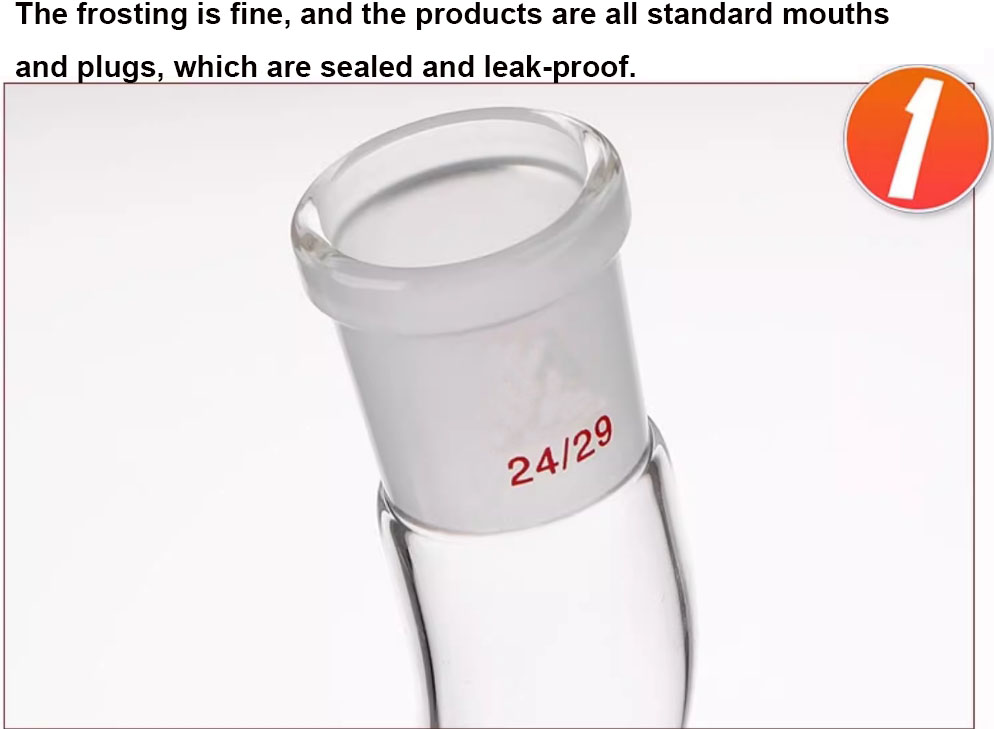

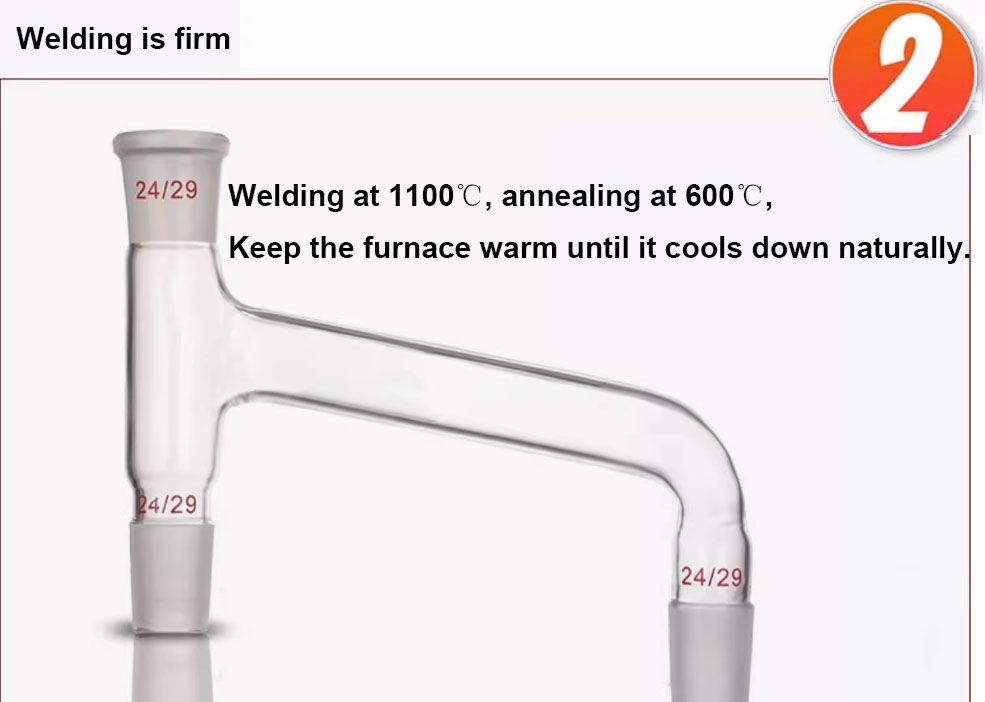

Distilling head bent with standard ground mouth’s frosting is fine, the seal is leak-proof; the surface is smooth, beautiful and elegant, the transparency is high, the surface is smooth, the thermal expansion coefficient is only one-third that of ordinary glass, and it is high temperature resistant and can withstand drastic changes in the temperature difference of 200°C. The welding is firm; welded at 1100℃, annealed at 600℃, and keep warm in the furnace until natural cooling.

Product details

We can produce different distilling heads as per customer’s requirements.We can also print your logo on the distilling heads bent if the quantity is large,please feel free to contact us online.

Product specifications

Product applications

（1）Organic synthesis: Distilling heads are often used to connect flasks and distillation tubes in organic synthesis to ensure the sealing and stability of the experimental device.

（2）Reduced Pressure Distillation: The vacuum distillation head is particularly suitable for experiments that require reduced pressure operations, which can reduce the possibility of liquid boiling and measure steam temperature.
