Product features

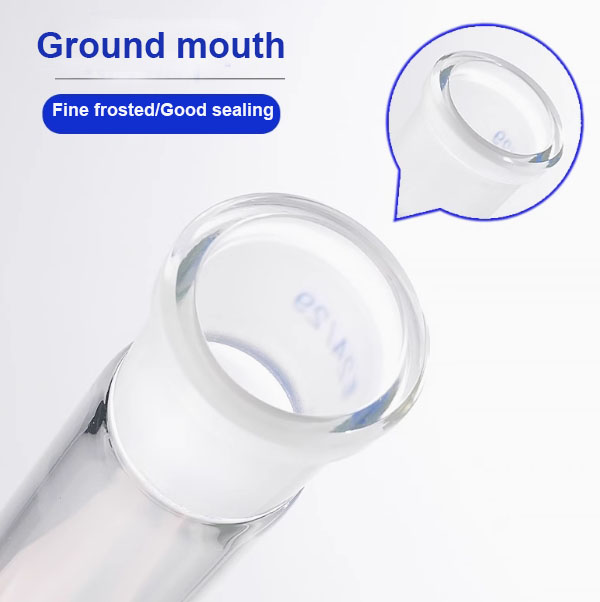

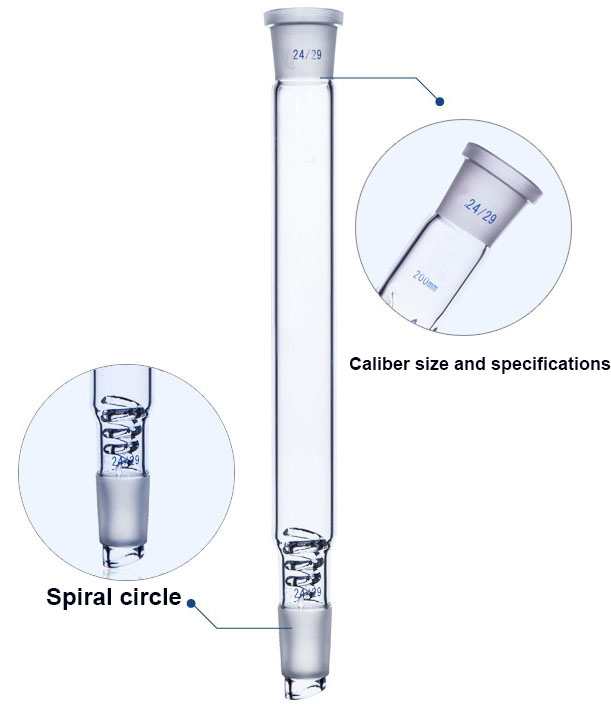

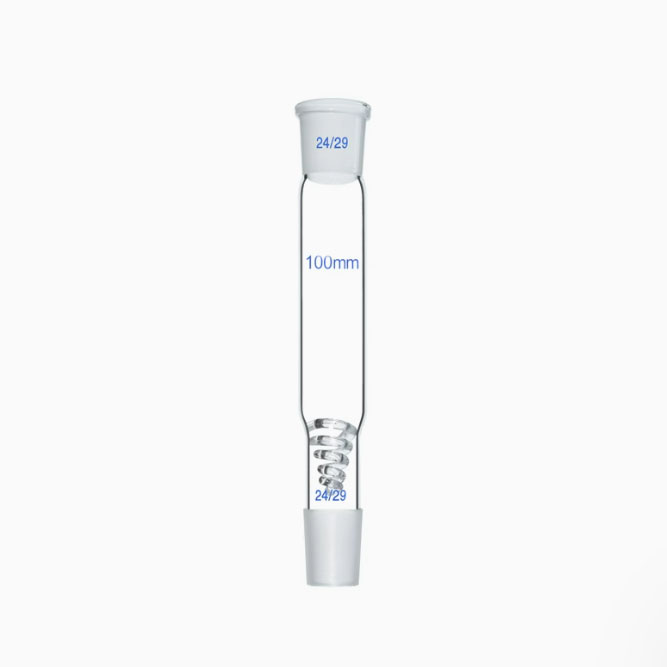

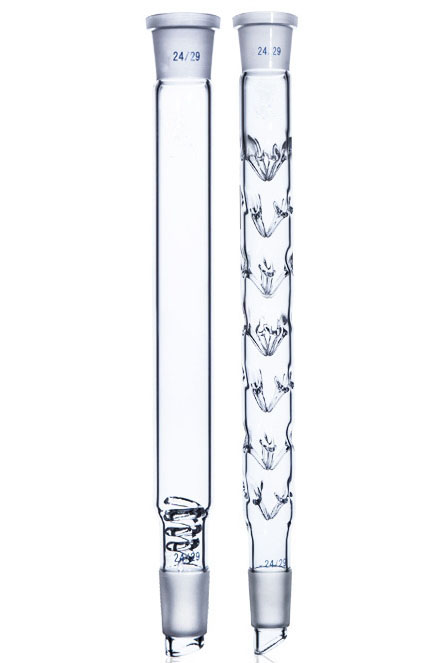

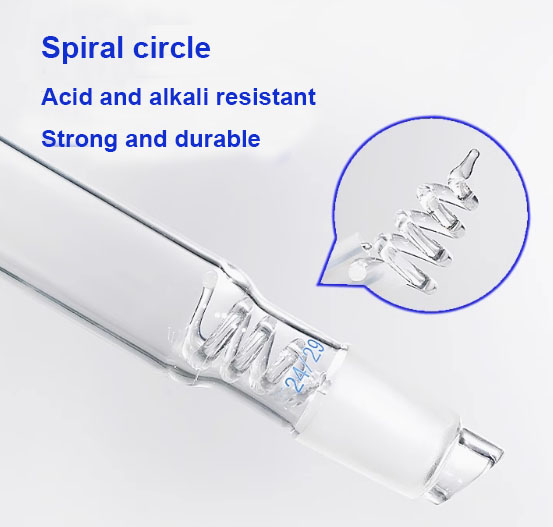

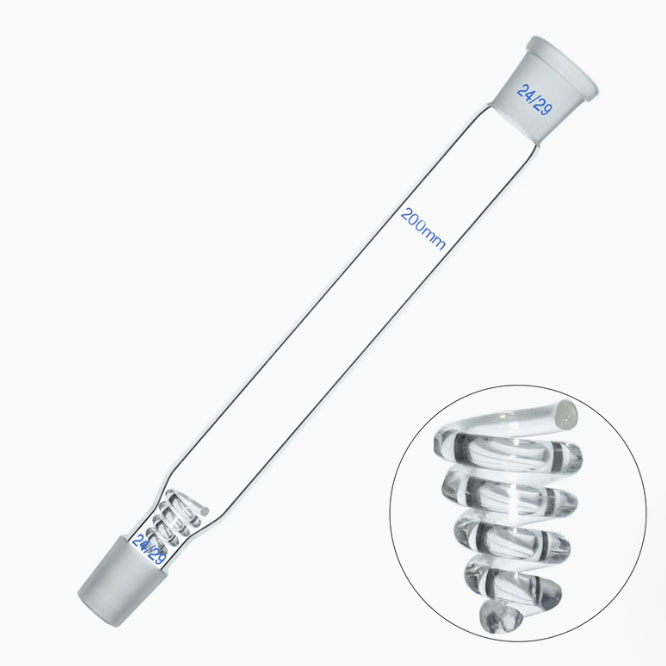

Filled type distilling cylinder with helix and standard ground mouth is a glass instrument used to separate and purify liquid mixtures in chemical experiments. The instrument interface is designed with standard ground mouth, and common specifications are 14, 19, 24, 29, etc. This ground mouth can be tightly connected with instruments such as distillation flasks, condensers, thermometer sleeves, etc. of the same specifications to ensure the sealing of the device, and it is convenient for quick assembly and disassembly of the experimental device. The fractionation column is usually a glass tube with a length of 10-50cm and a diameter of 15-25mm, and the column is filled with fillers4. The fillers are generally made of glass, porcelain or metal, such as glass beads, glass single rings, porcelain rings, metal wire mesh, etc. The presence of these fillers increases the gas-liquid contact area, so that the rising vapor and the descending condensate can fully exchange heat and substances.There is a spiral coil inside the column, which is usually made of glass or metal. The function of the spiral coil is to guide the vapor and liquid to be evenly distributed in the column, avoid channeling or wall flow, further increase the gas-liquid contact area, and improve the fractionation efficiency.

Filled type distilling cylinder with helix is made of high borosilicate glass, which has a very low thermal expansion coefficient, about one third of ordinary glass. The frosting is fine, the seal is leak-proof; the surface is smooth, beautiful and elegant, the transparency is high, and the surface is smooth.

Product details

We can produce different distilling cylinders as per customer’s requirements.We can also print your logo on the distilling cylinders if the quantity is large,please feel free to contact us online.

Product specifications

Product applications

（1) Organic synthesis: used to separate and purify reaction products in organic chemical reactions. For example, when preparing organic compounds such as esters and alcohols, the products can be separated from unreacted raw materials and by-products.

(2) Petrochemicals: preliminary separation and analysis of petroleum fractions, separation of different components in petroleum, such as gasoline, kerosene, diesel, etc. according to boiling point range.

(3) Flavor and fragrance industry: used to separate and purify various components in natural flavors or synthetic flavors to obtain high-purity flavor and fragrance products.
