Product features

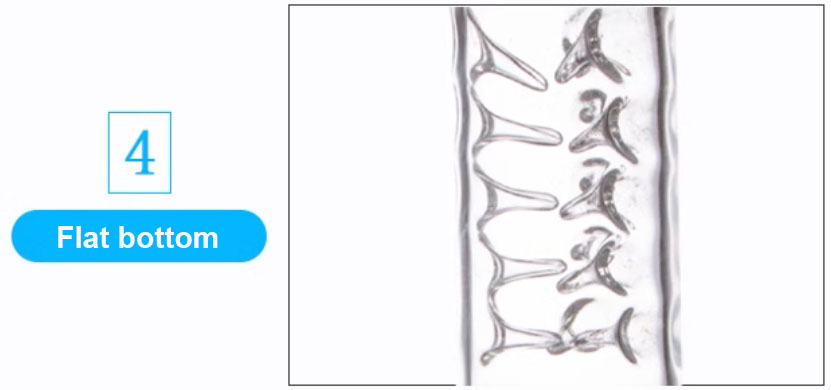

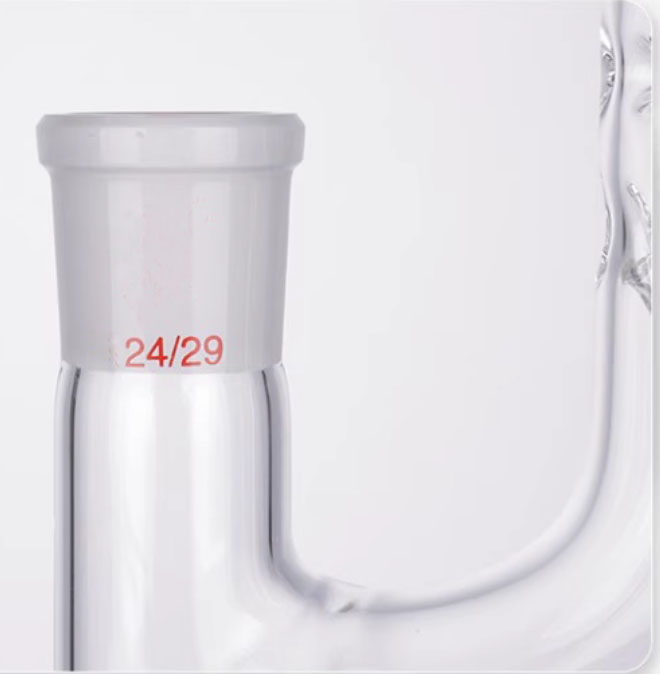

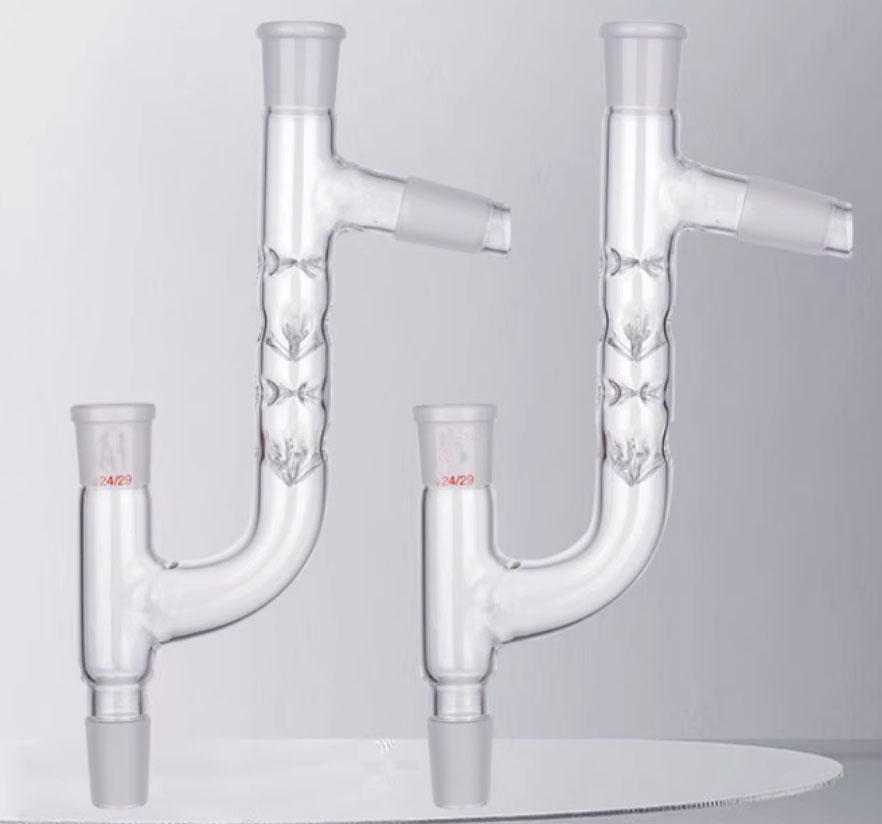

Distilling head with thorn tube is a glass instrument used for distillation and fractionation operations in chemical experiments. The main body of the fractionating head is a thorn-shaped fractionating column. There is a group of downward-inclined thorn-shaped glass columns at a certain distance in the column, and each group of thorn-shaped glass columns is arranged in a spiral shape. This structure can provide a large surface area, so that the vapor and liquid are fully in contact, which is conducive to multiple condensation and gasification processes, thereby improving the fractionation effect. The interface of the fractionating head is designed with a standard ground mouth. Common specifications are 10, 14, 19, 24, 29, 34, 40, etc.These specifications of ground joints can be tightly connected with instruments of corresponding specifications to ensure the sealing of the device, and are convenient for assembly with other instruments such as distillation flasks, condensers, thermometer sleeves, etc. into a complete distillation or fractionation device. During the fractionation process, the mixed liquid is heated to boiling, and the generated vapor rises into the thorn-shaped fractionation head. Through this multiple condensation and vaporization process, components with different boiling points can be gradually separated.

Distilling head with thorn tube is made of high borosilicate glass, which has good chemical stability, is resistant to acid and alkali corrosion, and can withstand the erosion of a variety of chemical substances; it also has excellent thermal stability, is resistant to high temperatures, can adapt to large temperature changes during the distillation process, and is not easily broken by sudden temperature changes; at the same time, high borosilicate glass has high transparency, which makes it convenient for experimenters to clearly observe the changes in the internal gas and liquid during the distillation process.

Product details

We can produce different distilling heads as per customer’s requirements.We can also print your logo on the distilling heads bent if the quantity is large,please feel free to contact us online.

Product specifications

Product applications

(1) In organic chemistry experiments, it can be used to separate, purify and identify compounds.

(2) In the field of petrochemicals, it can be used for petroleum distillation and product quality control.

(3) In the flavor and fragrance industry, it can be used for natural flavor extraction and synthetic flavor purification.
