Product features

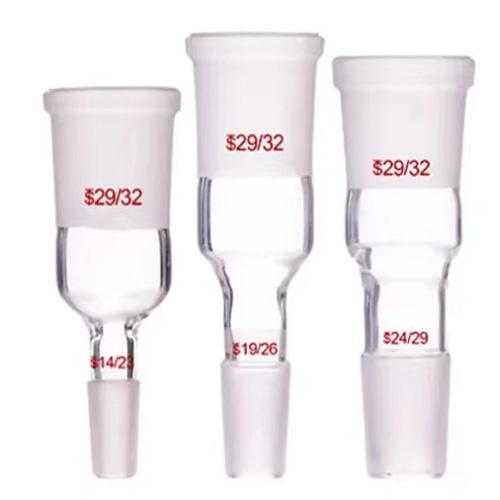

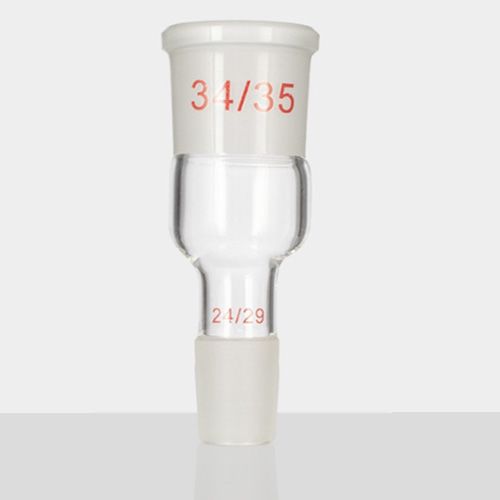

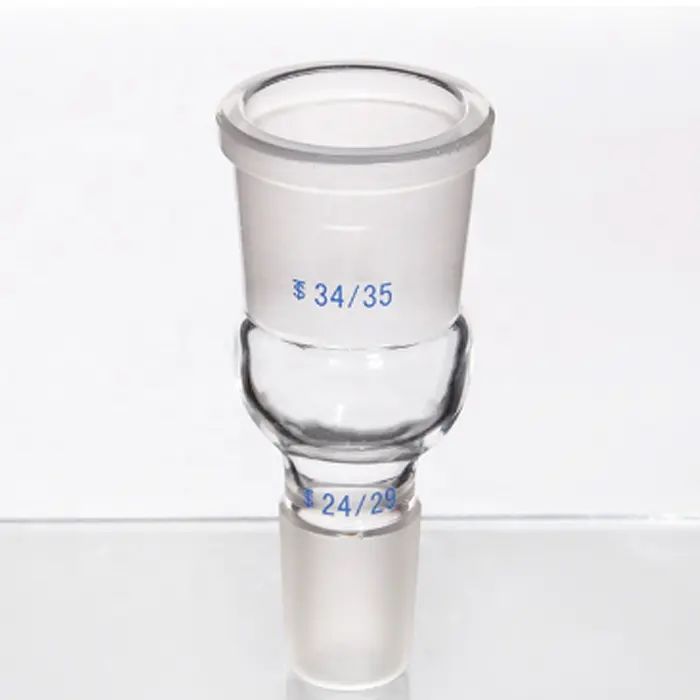

Big mouth and small stopper joint is an accessory used to connect different specifications of ground mouth in laboratory glass instruments. In contrast to the small mouth large plug joint, the large mouth small plug joint has a larger ground mouth at one end and a smaller ground plug at the other end. The sizes of ground mouth and ground plug follow the same standard, such as the common 14#, 19#, 24#, 29#, 34#, etc. It is usually made of high borosilicate glass and has good chemical and thermal stability. When the ground mouth and ground plug sizes of different glass instruments in the laboratory do not match and cannot be directly connected, the large mouth small plug joint can be used as a bridge for transition connection.

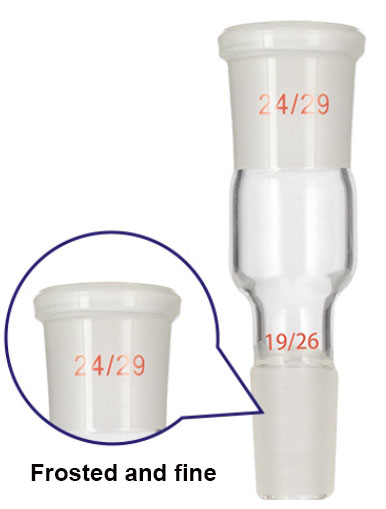

Big mouth and small stopper joint can withstand certain temperature changes and chemical corrosion. The ground mouth and the ground plug have good frosting fit, which can achieve a high vacuum degree, effectively prevent leakage, and ensure the sealing of the experimental device. It is used to connect standard ground-mouth glass instruments of different specifications, playing a transitional role, so that instruments that could not be directly connected can be assembled together, meeting the construction requirements of the experimental device.

Product details

We can produce different joints as per customer’s requirements.We can also print your logo on the joints if the quantity is large,please feel free to contact us online.

Product specifications

Product applications

(1) Instrument assembly: Connect standard ground-mouth glass instruments of different specifications, such as connecting large-ground-mouth flasks with small-ground-mouth condensers, distillation heads, dropping funnels, etc., to build experimental devices such as distillation, reflux, and reaction.

(2) Gas experiments: In experiments such as gas preparation, purification, and collection, it is used to connect gas generators, gas washing bottles, drying tubes, gas collecting bottles, etc. to ensure the sealing and smooth ventilation of the gas system.

(3) Special experimental needs: When there are insufficient glass instruments or special needs in the experiment, it can be used as a transition connection accessory to achieve the connection of different-caliber ground-mouth instruments to meet the specific requirements of the experiment, such as connecting ground-mouth reagent bottles and bottle caps of different specifications.
