Product features

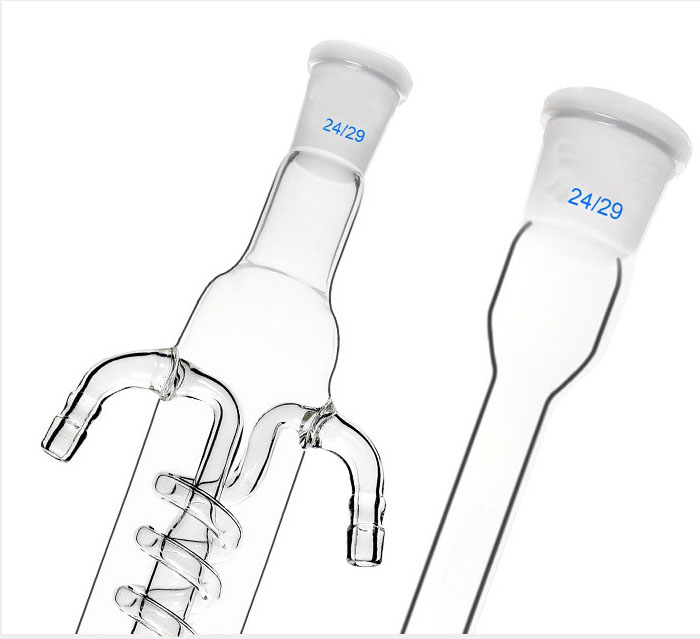

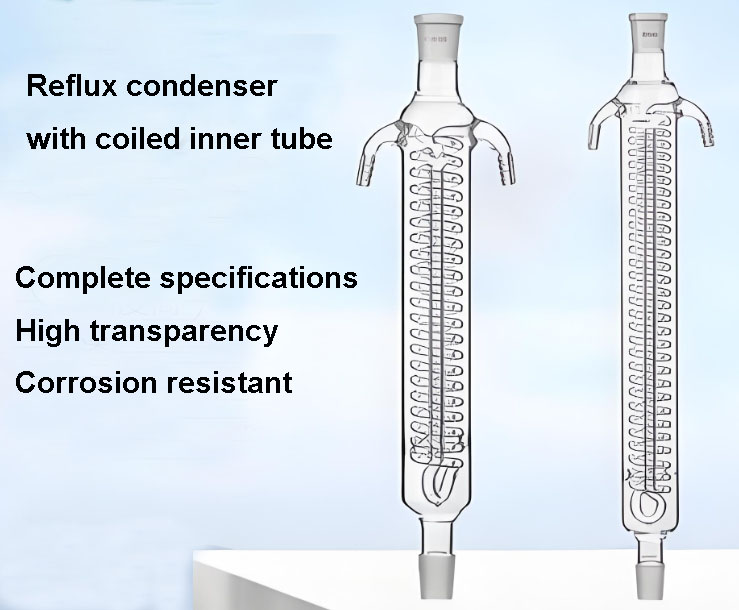

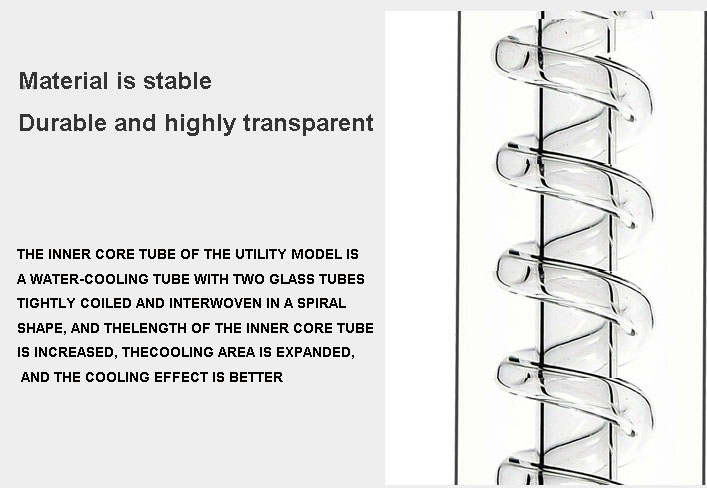

Reflux condenser with coiled inner tube is a commonly used glass instrument in laboratories, mainly used for reflux operations in chemical experiments. It consists of an inner core tube and an outer tube. The inner core tube is serpentine, usually a spiral glass tube, which increases the length and cooling area of the glass tube. The outer tube is a straight glass tube, which is placed outside the inner core tube to form an annular space between the inner core tube and the inner core tube for passing cooling water.Both ends are equipped with standard ground-mouth interfaces, which are convenient for tight connection with other glass instruments with the same specifications of ground-mouth, such as flasks, to form a reflux device. During the reflux operation, after the liquid in the flask is heated and boiled, the generated steam rises and enters the inner core tube of the serpentine condenser. Since the inner core tube is cooled by the cooling water in the outer tube, the steam quickly condenses into liquid after being cooled, and flows back into the flask along the inner wall of the serpentine inner core tube. In this way, the reactants can be kept in a boiling state for a long time, while preventing the volatilization loss of the reactants, so that the reaction can proceed fully.

Reflux condenser with coiled inner tube is made of high borosilicate 3.3 glass, with fine workmanship, temperature resistance, acid and alkali resistance, durability, high transparency, clean and transparent; good light transmittance, stable material, lightweight and easy to use; fine frosting, standard caliber.

Product details

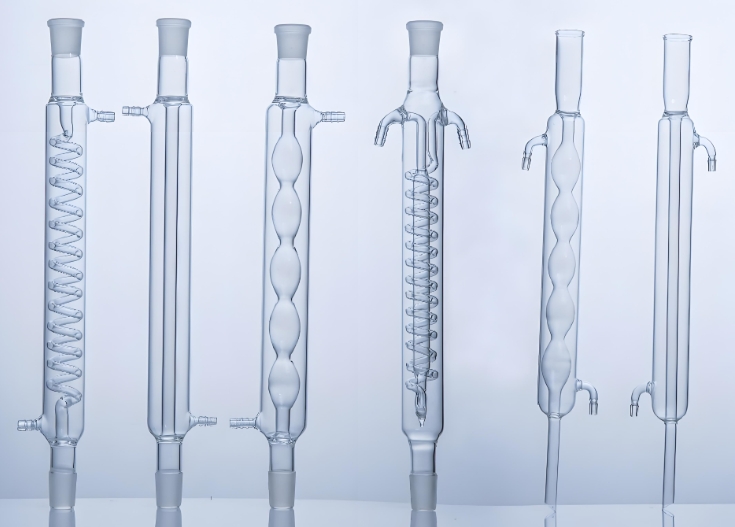

We can produce different condensers as per customer’s requirements.We can also print your logo on the condensers if the quantity is large,please feel free to contact us online.

Product specifications

Product applications

Reflux condensers with coiled inner tubes are mainly used in chemical experiments, chemical production and pharmaceutical industries. In chemical experiments, they are used for distillation and fractionation, reflux reaction and organic synthesis; in chemical production, they are used for product distillation and reaction process control; in the pharmaceutical industry, they are used for drug synthesis and drug refining.
