Product features

The standard ground straight reflux condenser is a commonly used glass instrument in chemical experiments. It is mainly used to realize the reflux operation in chemical reactions, so that the reaction mixture maintains a relatively stable composition under heating conditions, and improves the reaction efficiency and product purity. It consists of a straight glass tube as an inner core tube and an outer sleeve. The inner core tube is the steam channel, in which the liquid vapor flows. The outer sleeve is sleeved outside the inner core tube, and an annular space is formed between the inner core tube and the inner core tube, which is used to pass cooling water to cool the steam in the inner core tube. There are standard ground joints at both ends. There are many sizes of ground joints, and the common ones are 14#, 19#, 24#, etc.This standard ground mouth design can be easily connected with other glass instruments with the same specification ground mouth, such as flasks, distillation heads, and connecting tubes, to form various experimental devices. The connection is tight and the sealing is good, which can effectively prevent liquid or gas leakage during the experiment. The structure is simple, consisting of a straight inner core tube and an outer tube, with standard ground mouth interfaces at both ends; it has strong versatility, and the standard ground mouth can be connected with a variety of glass instruments, suitable for different experimental devices; the cooling effect is good: through the countercurrent heat exchange between the hot steam in the inner core tube and the cooling water in the outer tube, the steam can be effectively condensed; it is easy to operate, easy to install and disassemble, and easy to control the cooling water flow and adjust the reaction temperature.

The ground mouth of the straight reflux condenser is made of high borosilicate glass, which has uniform thickness, no bubbles, strong and durable, good light transmittance and smooth surface; fine frosting, tight connection, high transparency, heat resistance and high temperature resistance.

Product details

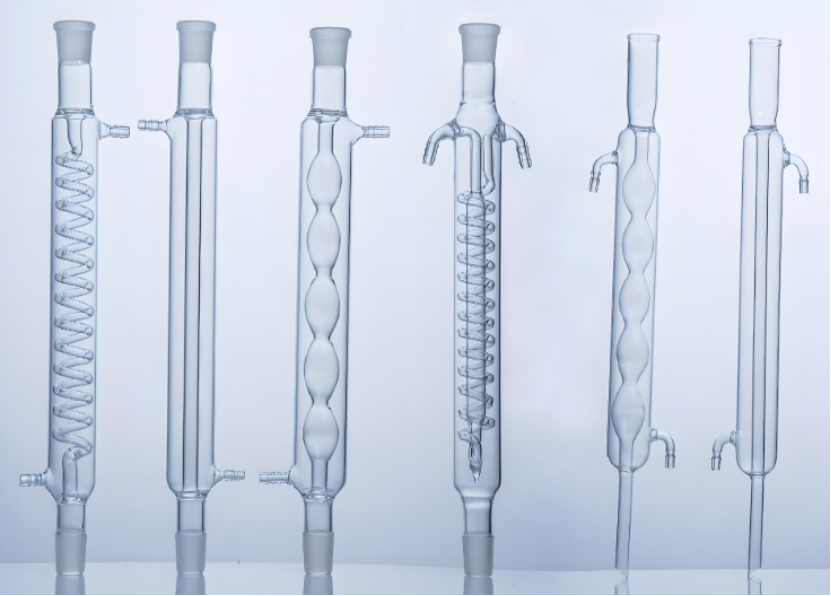

We can produce different condensers as per customer’s requirements.We can also print your logo on the condensers if the quantity is large,please feel free to contact us online.

Product specifications

Product applications

Straight reflux condenser with standard ground mouth is mainly used in organic synthesis reactions in chemical experiments, such as esterification and hydrolysis. It enables the reactants to react fully through reflux, thereby increasing the conversion rate. It is also used in distillation experiments to cool and condense the distillate, achieving the separation and purification of substances. In the chemical industry production, it can be used for the rectification of products and the material circulation in the reaction process to ensure the high - efficiency and stable operation of the production process.
