Product features
The extraction apparatus is suitable for leaching tests of fats and oils contained in organic substances. The complete set of this product is a standard frosted stopper. Each set comes with 1pc condenser tube, 1pc extraction tube and 1pc flasks.

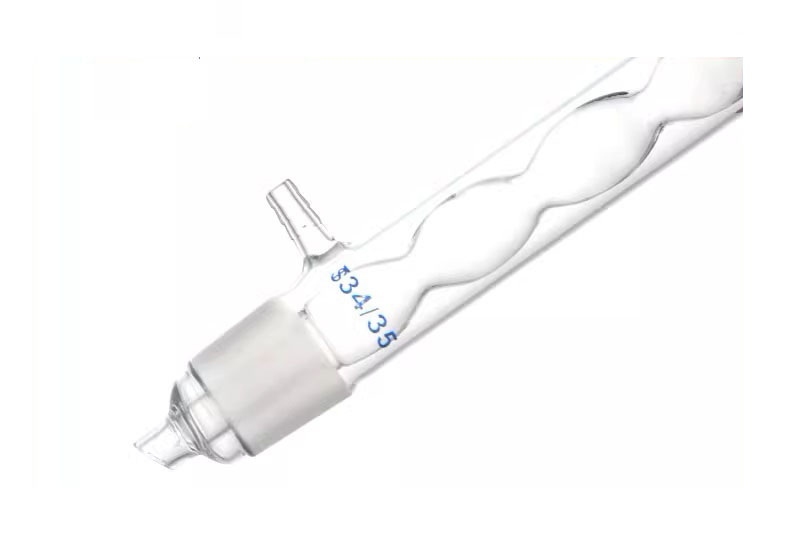

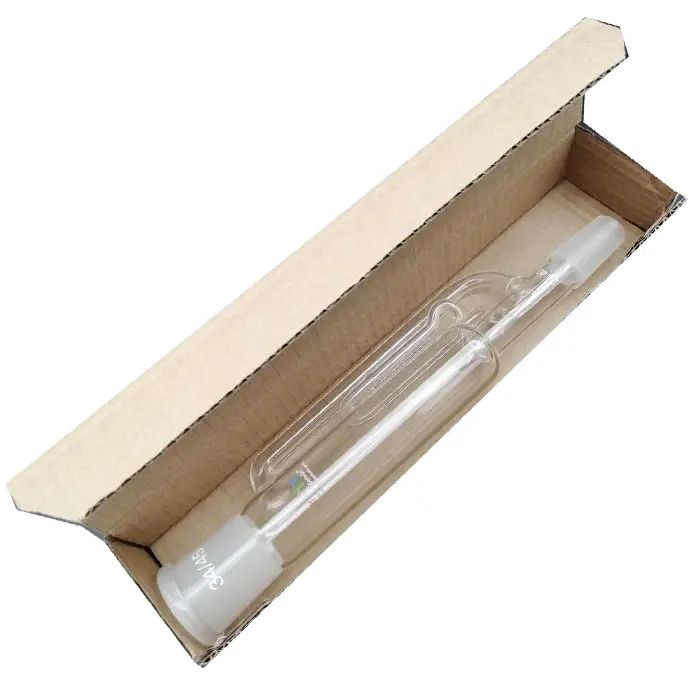

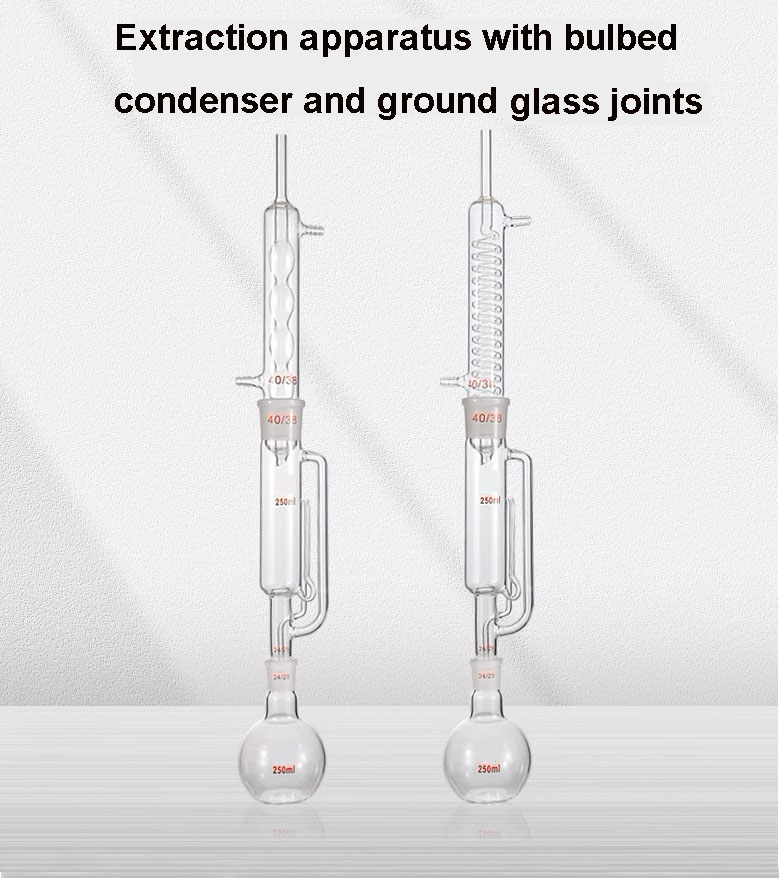

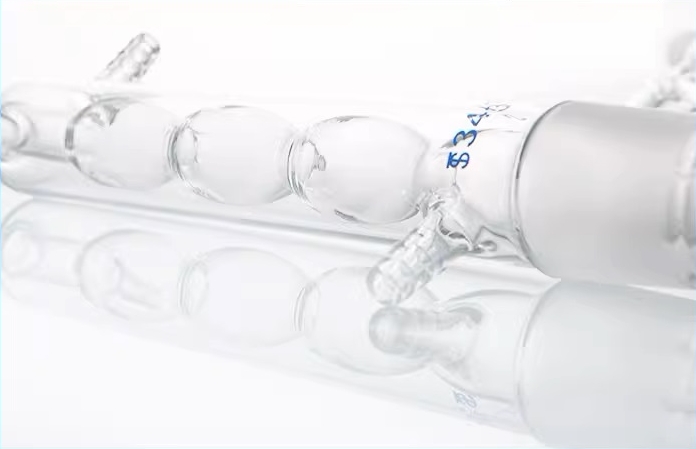

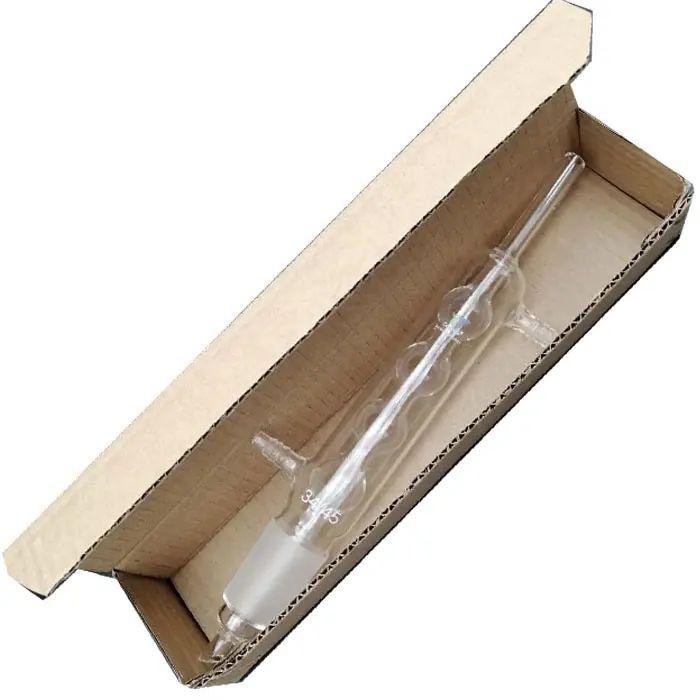

The glass extraction apparatus consists of three parts: a round-bottomed flask, an extraction cylinder and a condenser tube. This combined structure forms a closed continuous extraction system. The extraction cylinder is used to place the sample to be extracted (such as solid substances containing fat), the round-bottomed flask contains the extraction solvent, and the condenser tube is used to condense and reflux the solvent vapor.

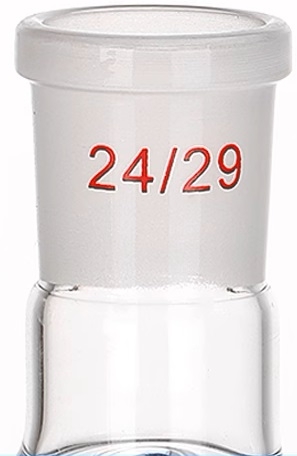

Its spherical design increases the contact area between the solvent and the sample. Repeated extraction processes can fully extract the fat in the sample. The connections between each component are tight, which can effectively prevent solvent evaporation and leakage. The ground glass interface can provide better sealing, ensures that during long-term extraction operations, solvent vapor will not escape into the external environment, which not only ensures the safety of the experiment, but also maintains the concentration of the solvent in the extraction system. Stable to ensure extraction efficiency and accuracy.

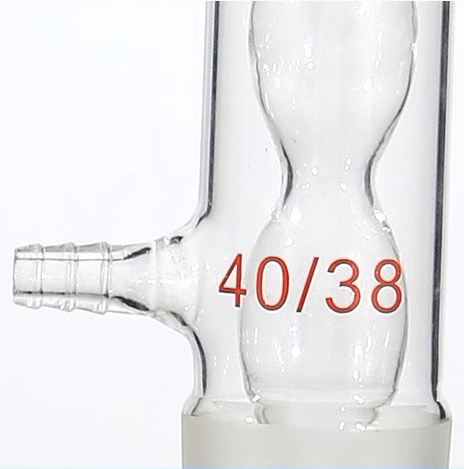

The glass extraction apparatus is made of high borosilicate glass material, with low expansion rate, high temperature resistance, acid and alkali resistance, high strength, high hardness, high light transmittance, and high chemical stability; thickened glass, strong and durable; fine workmanship, smooth surface, no protrusions, beautiful appearance, solid workmanship; good light transmittance, high transparency, beautiful appearance ; frosted bottle mouth, strong sealing, stable material; fine workmanship, first-class lighting team, to meet experimental requirements; smooth welding, 1100℃ welding, 600℃ annealing, natural cooling in furnace insulation; standard ground mouth, fine frosting, no sealing leak; the pagoda head has multiple hoops and small mouths, with sharp edges and corners, and the leather tubes are tightly connected.
Product details
We can produce different extraction apparatus as per customer’s requirements.We can also print your logo on the extraction apparatus if the quantity is large,please feel free to contact us online.
Product specifications
| Item NO. | Flat boiling flask | Extraction tube | Condenser | |||||
| Capacity (ml) | Ground mouth | Valid Volume (mm) | Ground mouth | Ground stopper | Length (mm) | Ground stopper | ||
| 1791-60 | 60 | 19/26 | Φ30×60 | 34/35 | 19/26 | 200 | 34/35 | |
| 1791-150 | 150 | 19/26 | Φ30×70 | 34/35 | 19/26 | 220 | 34/35 | |
| 1791-250 | 250 | 24/29 | Φ37×80 | 40/38 | 24/29 | 240 | 40/38 | |
| 1791-500 | 500 | 24/29 | Φ47×100 | 50/42 | 24/29 | 270 | 50/42 | |
Product applications
The spherical extraction apparatus is suitable for leaching tests of fats and oils contained in organic substances.It is suitable for the extraction of fat from various types of samples, includes but not limited to animal and plant tissues, food, feed, etc. Effective extraction operations can be performed on samples with different textures (such as powder, block) and different fat contents. As long as the appropriate solvent is selected according to the characteristics of the sample, the spherical extraction apparatus can be used for fat extraction.
