Product features
The extraction apparatus with coiled condenser is suitable for leaching tests of fats and oils contained in organic substances. The complete set of this product is a standard frosted stopper. Each set comes with 1pc condenser tube, 1pc extraction tube and 3pcs flasks.

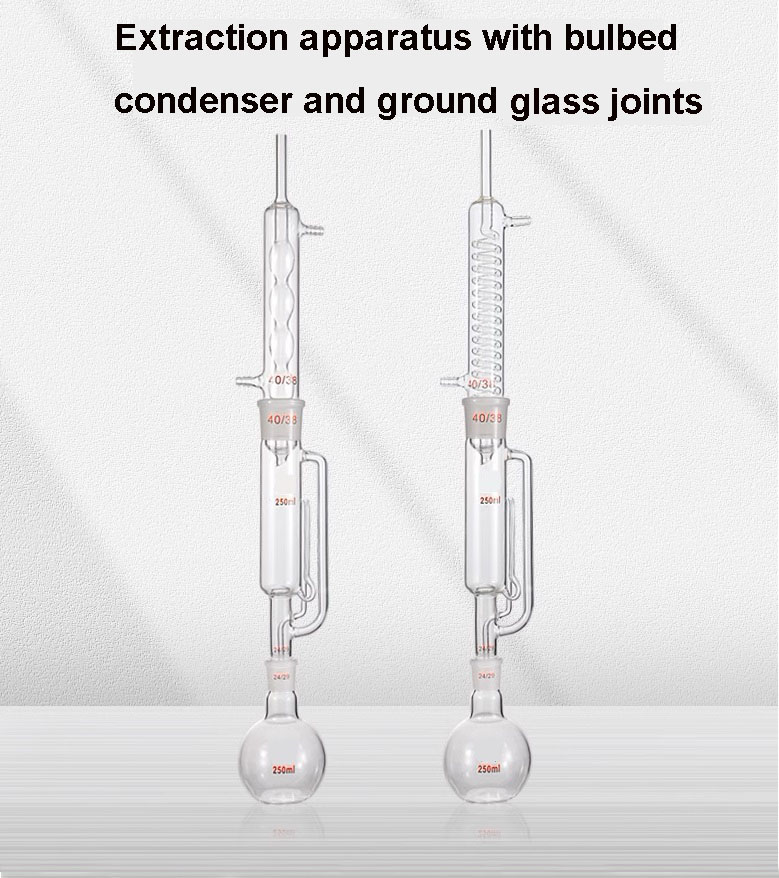

The extraction apparatus with coiled condenser has a unique structural design. The condensation tube part is snake-shaped. This shape increases the residence time and contact area of the steam in the condensation tube, allows the steam to be more fully cooled and liquefied, improves condensation. efficiency. It usually consists of three parts: extraction bottle, extraction tube and condenser. The structure is relatively simple. There are siphons and connecting tubes on both sides of the extraction tube. The design of the siphon is ingenious. The connection between the various parts is not complicated and is easy to assemble and disassemble. The connections between each component are tight, which can effectively prevent solvent evaporation and leakage.

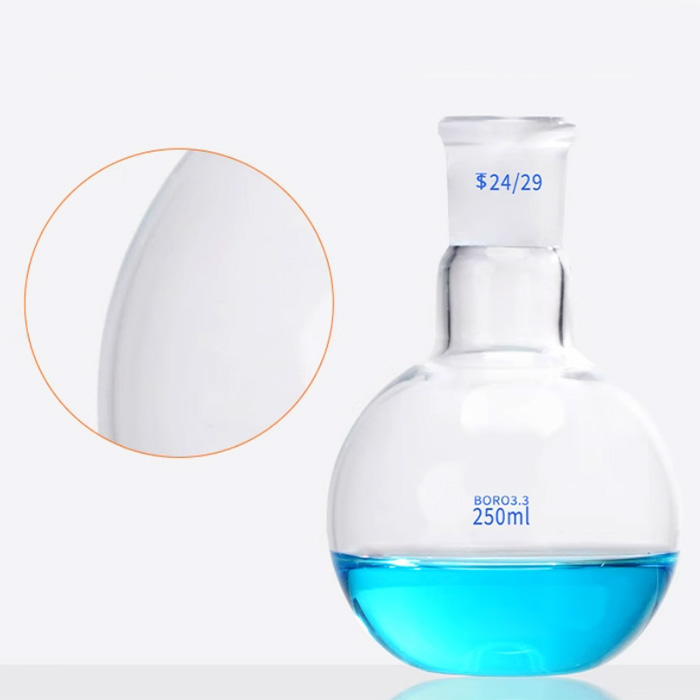

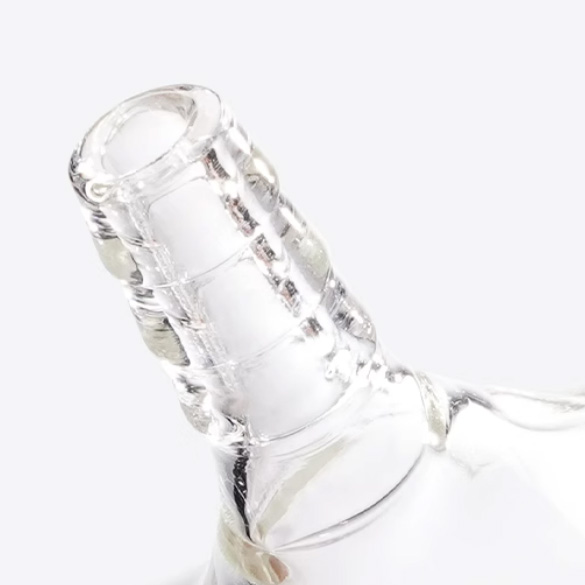

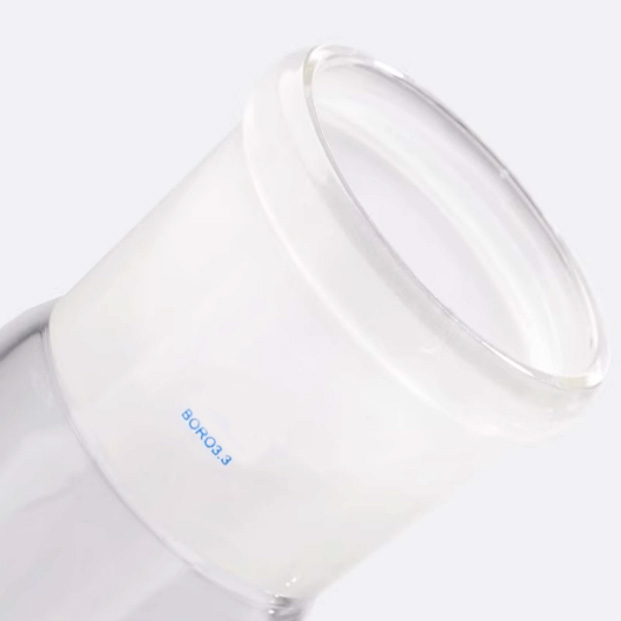

The extraction apparatus with coiled condenser is made of high borosilicate glass material, with low expansion rate, high temperature resistance, acid and alkali resistance, high strength, high hardness, high light transmittance, and high chemical stability; thickened glass, strong and durable; fine workmanship, smooth surface, no protrusions, beautiful appearance, solid workmanship; good light transmittance, high transparency, beautiful appearance ; frosted bottle mouth, strong sealing, stable material; fine workmanship, first-class lighting team, to meet experimental requirements; smooth welding, 1100℃ welding, 600℃ annealing, natural cooling in furnace insulation; standard ground mouth, fine frosting, no sealing leak; the pagoda head has multiple hoops and small mouths, with sharp edges and corners, and the leather tubes are tightly connected.
Product details
We can produce different extraction apparatus as per customer’s requirements.We can also print your logo on the extraction apparatus if the quantity is large,please feel free to contact us online.
Product specifications
| Item NO. | Flat boiling flask | Extraction tube | Condenser | ||||
| Capacity (ml) | Ground mouth | Valid Volume (mm) | Ground mouth | Ground stopper | Length (mm) | Ground stopper | |
| 1792-60 | 60 | 19/26 | Φ30×60 | 34/35 | 19/26 | 200 | 34/35 |
| 1792-150 | 150 | 19/26 | Φ30×70 | 34/35 | 19/26 | 220 | 34/35 |
| 1792-250 | 250 | 24/29 | Φ37×80 | 40/38 | 24/29 | 240 | 40/38 |
| 1792-500 | 500 | 24/29 | Φ47×100 | 50/42 | 24/29 | 270 | 50/42 |
Product applications
The extraction apparatus with coiled condenser is suitable for leaching tests of fats and oils contained in organic substances.It is suitable for the extraction of fat from various types of samples, includes but not limited to animal and plant tissues, food, feed, etc. Effective extraction operations can be performed on samples with different textures (such as powder, block) and different fat contents. As long as the appropriate solvent is selected according to the characteristics of the sample, the extraction apparatus with coiled condensers can be used for fat extraction.
