Product features

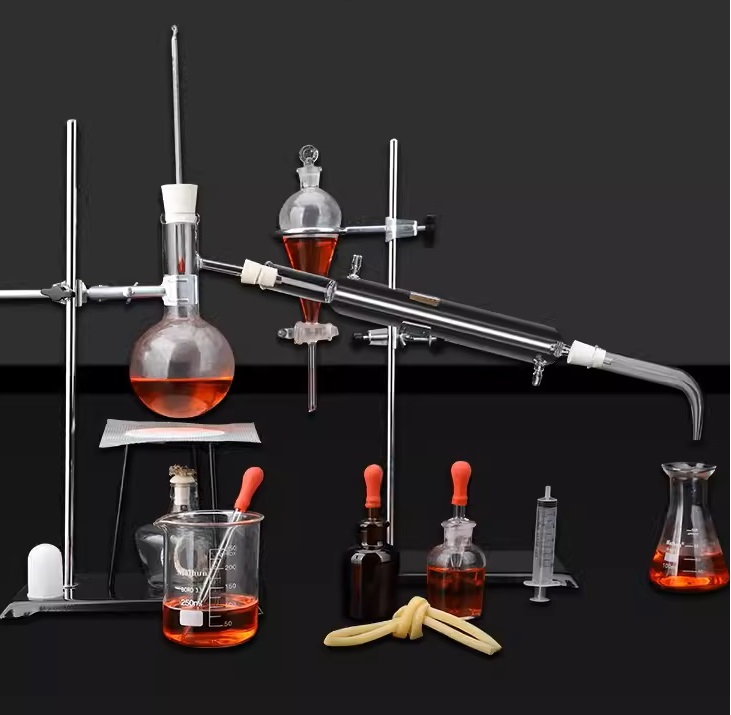

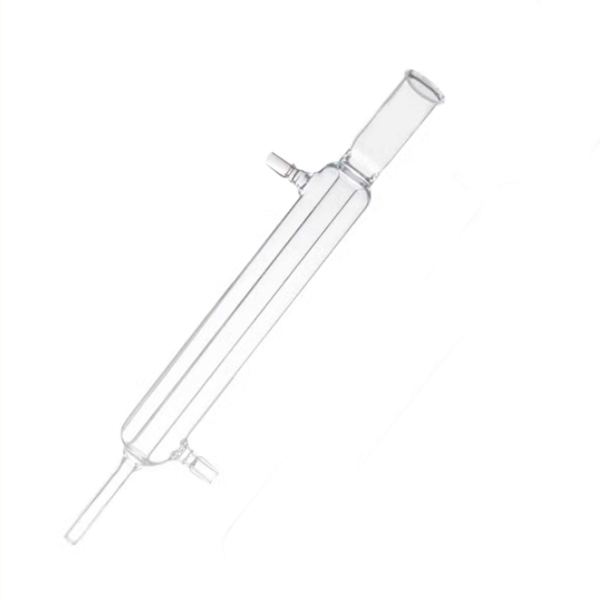

CONDENSER Liebig is made of high borosilicate glass,simple and intuitive structure. Mainly used in tilt distillation units.It has good acid and alkali resistance and high temperature resistance. It has high chemical stability and good transparency. Experimenters can intuitively observe the steam condensation process and the flow of liquid in the condenser tube,make it easy to detect problems and make adjustments in time.
The straight design of the condenser liebig provides efficient condensation performance. The flow direction of cooling water is designed reasonably. The straight pipe design allows the condensed liquid to flow out more smoothly,not easy to accumulate in the condenser tube. It can be easily cleaned after using. It is suitable for distillation and fractionation operations of substances with boiling points below 140°C.
Condenser liebig tube has fine workmanship, smooth surface, no burrs, uniform wall thickness, smooth tube mouth, transparent gloss, high transparency and stable process.
Product details
We can customize special specifications of condenser tubes according to customer requirements. If you order a large quantity, we can customize an exclusive logo for you. Please consult online customer service for specific details.
Product specifications
| Item NO. | Length of jacket（mm) |
| Cooling area(dm2) | Length（mm) | PCS/CTN |
| 1213-200 | 200 | 18 | 0.7 | 350 | 48 |
| 1213-250 | 250 | 18 | 1.0 | 420 | 48 |
| 1213-300 | 300 | 20 | 1.1 | 480 | 48 |
| 1213-400 | 400 | 22 | 1.6 | 590 | 48 |
| 1213-500 | 500 | 24 | 2.2 | 710 | 48 |
| 1213-600 | 600 | 24 | 2.8 | 810 | 24 |
| 1213-800 | 800 | 28 | 4.3 | 1050 | 12 |
| 1213-1000 | 1000 | 28 | 5.7 | 1250 | 12 |
Product applications
Chemical industry: Condenser liebig tubes are widely used in the chemical industry for cooling high-temperature reactors. For example, in a nitrification reactor, the straight condenser is mainly used to cool the nitrification solution in the reactor and control the temperature and reaction rate of the reaction.
Pharmaceutical field:In the process of drug synthesis,condenser liebig can be used to control the release of heat from drugs, accelerate the reaction rate, and increase the yield of drugs. In addition, during the manufacturing process of biological agents, condenser liebig can be used to control the temperature of biological agents and ensure their stability.
Food field: Condenser liebig tubes are mainly used in the food field for heating and sterilizing liquid beverages such as juice and milk. In the production process of liquid beverages such as juice and milk, it can be used to heat liquids and kill bacteria during heating, to ensure product safety and quality.
Semiconductor field: In the semiconductor industry, condenser liebig tubes are often used to control the temperature of silicon wafers to ensure the stability and high quality of silicon wafers during preparation.
In summary, condenser liebig tubes have a wide range of applications and can be used in cooling, heating, evaporation and other processes in chemical, pharmaceutical, food, semiconductor and other industries. Because of this,it becomes an indispensable heat transfer element in the production processes of related industries.
