Product features

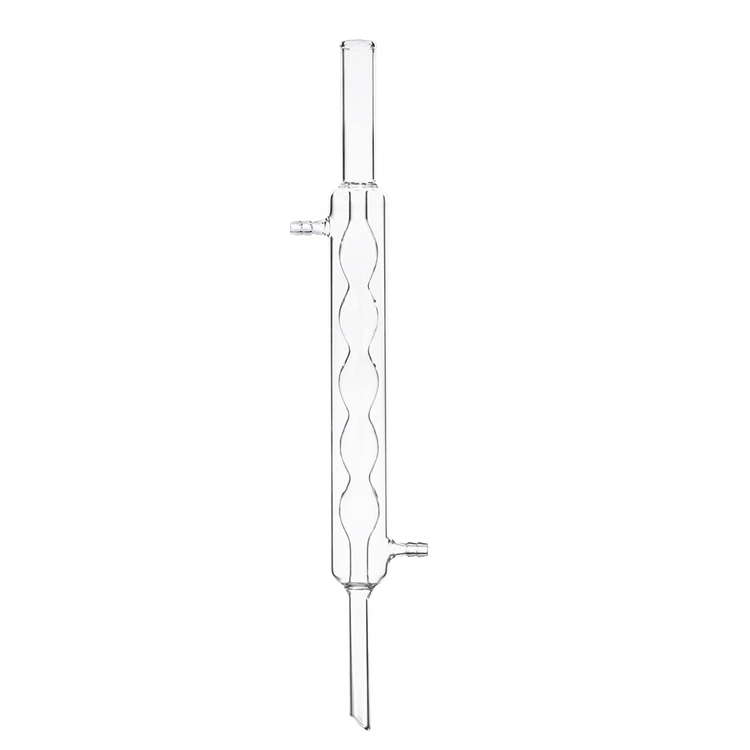

Condenser with bulbed inner tube is composed of several glass balls connected to form one or more spherical parts. These spherical parts are composed of connected glass balls to form an inner tube. This design facilitates even and efficient cooling. Condenser with bulbed inner tubes has a larger cooling area and higher condensation efficiency. Due to its large internal surface area, the cooling effect is relatively good, and it is suitable for experiments that require a strong cooling effect, especially for higher boiling points liquids.
Condenser with bulbed inner tubes are suitable for high flow condensation, especially reflux operations in organic preparations. It is often used in laboratories of scientific research, universities, petroleum, chemical industry, pharmaceutical industry, medical and health and other units as a distillation, fractionation or reflux device.
Advantages of condenser with bulbed inner tubes include good heat transfer effect, beautiful shape, and adaptability to different environments. Condenser with bulbed inner tube is made of high borosilicate glass, with low expansion rate, high temperature resistance, acid and alkali resistance, high strength, high hardness, high light transmittance, high chemical stability, fine workmanship, smooth surface, no burrs, no protrusions, and convenient to connect the hose.

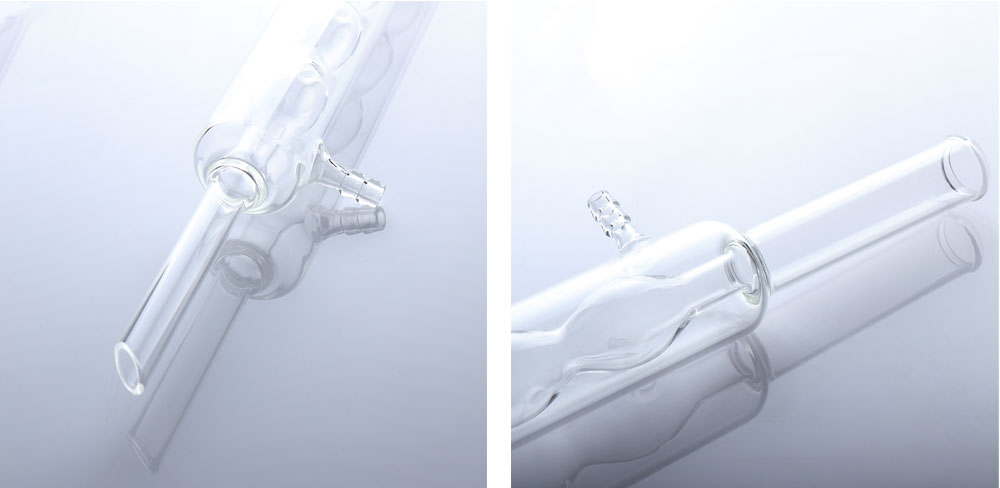

Product details
We can customize special specifications of condenser tubes according to customer requirements. If you order a large quantity, we can customize an exclusive logo for you. Please consult online customer service for specific details.
Product specifications
| Item NO. | Length of jacket（mm) | D.of upper tube（mm) | Cooling area (dm2) | Length（mm) | PCS/CTN |
| 1214-200 | 200 | 18 | 1.0 | 350 | 48 |
| 1214-250 | 250 | 18 | 1.5 | 420 | 48 |
| 1214-300 | 300 | 20 | 1.8 | 480 | 24 |
| 1214-400 | 400 | 22 | 2.7 | 590 | 24 |
| 1214-500 | 500 | 24 | 3.7 | 710 | 24 |
| 1214-600 | 600 | 24 | 4.9 | 800 | 16 |
| 1214-800 | 800 | 28 | 7.6 | 1050 | 12 |
| 1214-1000 | 1000 | 28 | 10.0 | 1250 | 12 |
| 1214-1200 | 1200 | 33 | 12.7 | 1360 | 6 |
| 1214-1500 | 1500 | 33 | 17.0 | 1720 | 6 |
Product applications
Condenser with bulbed inner tubes are mainly used for reflux reactions, especially in organic compound synthesis devices. Due to their large condensation area and good condensation effect, they are suitable for vertical distillation devices.
Condenser with bulbed inner tubes are widely used in experiments and production in the fields of organic chemistry, pharmaceutical industry, petrochemical industry, etc. They can be used for distillation, fractionation, reflux and other operations. They are one of the commonly used condensation equipment in laboratories and industrial production.
