Product features

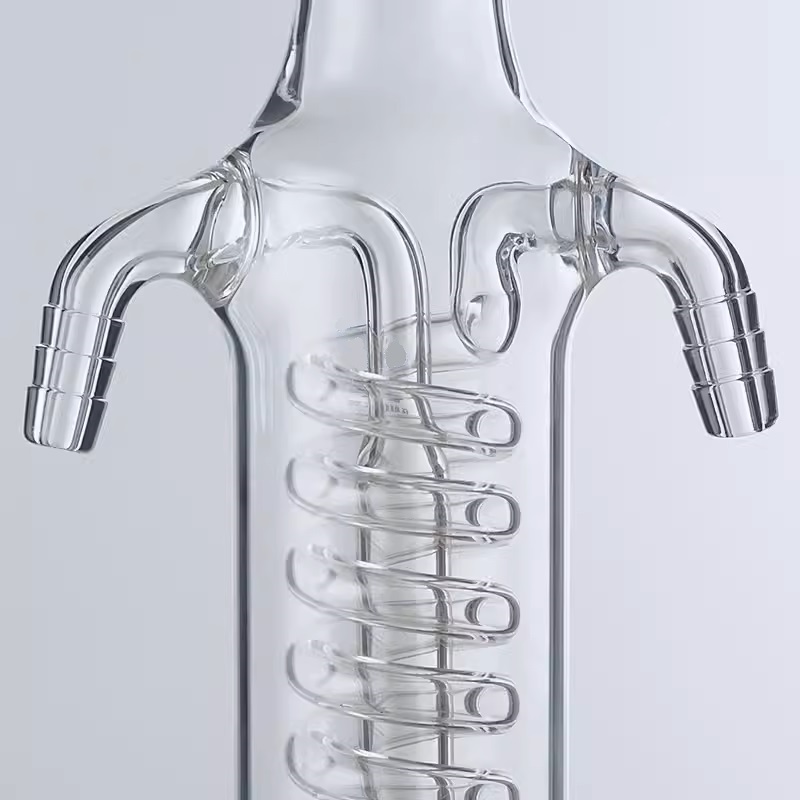

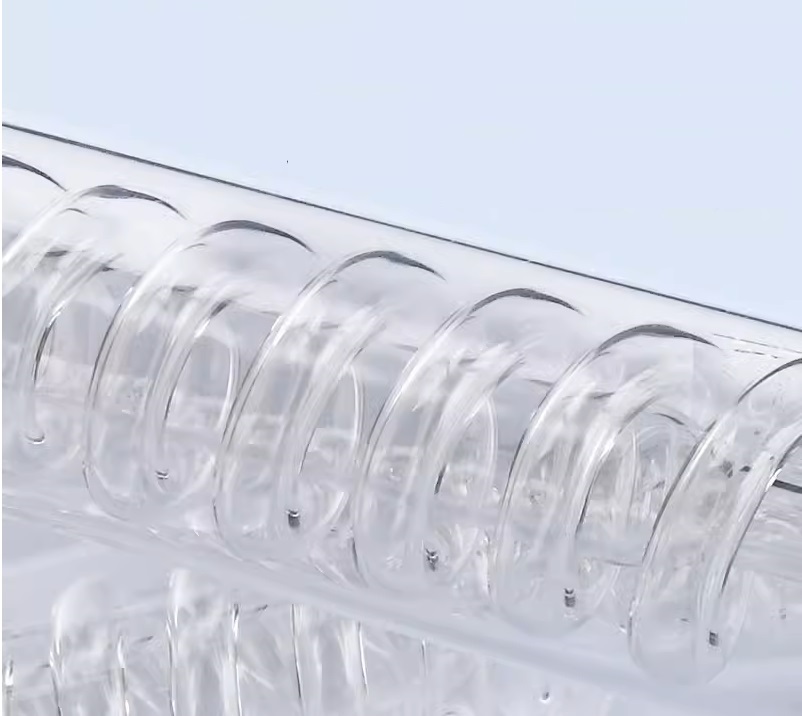

Condenser reflux with coiled inner tube is composed of multiple curved tubes, giving it a unique coiled shape. This structure greatly increases the length and internal surface area of the condenser tube, allowing the steam to have a longer flow path in the tube and more contact area for heat exchange with the cooling water. The uniform curvature ensures that steam can flow smoothly within the tube and improves the efficiency of heat exchange. Made of high-quality glass material, the connection between each part is tight and strong, and it can withstand certain pressure and temperature changes without being easily damaged. The two ends of the condensation tube are equipped with fixing devices or interfaces to facilitate installation on the experimental rack and maintain stability.
Condenser reflux with coiled inner tube can quickly and efficiently cool and condense steam into liquid. For substances with high boiling points, easily volatile or large amounts of steam, the condensation effect is particularly significant, which can reduce the loss of steam and improve the yield and accuracy of experiments. By adjusting the flow and temperature of the cooling water, the temperature in the condensing tube can be accurately controlled to achieve the best condensation effect for different substances.

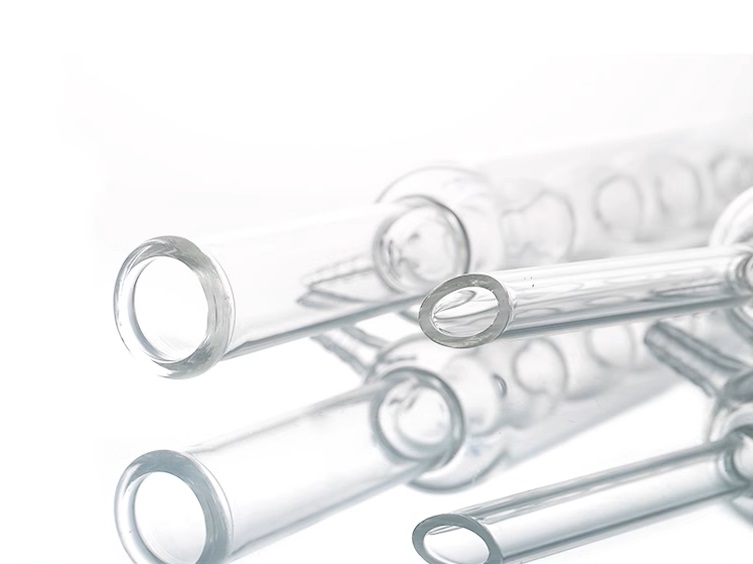

Condenser reflux with coiled inner tube is made of high borosilicate glass, with fine workmanship, smooth surface, no burrs, no protrusions, uniform wall thickness, smooth tube mouth, transparent gloss, and easy to connect hoses. The connection method is simple, and the connection with experimental devices such as flasks is convenient and quick.
Product details
We can customize special specifications of condenser tubes according to customer requirements. If you order a large quantity, we can customize an exclusive logo for you. Please consult online customer service for specific details.
Product specifications
| Item NO. | Length of jacket（mm) | O.D.of upper tube（mm) | Cooling area ( dm2) | Length（mm) | PCS/CTN |
| 1216-300 | 300 | 20 | 5.40 | 480 | 24 |
| 1216-400 | 400 | 22 | 7.30 | 590 | 24 |
| 1216-500 | 500 | 24 | 9.20 | 710 | 24 |
| 1216-600 | 600 | 24 | 10.50 | 810 | 16 |
Product applications
Condenser reflux with coiled inner tubes are mainly used in chemical experiments, scientific research and industrial production.
It is suitable for reflux operations in various chemical experiments and can play an important role in fields such as organic synthesis, inorganic chemistry experiments, and pharmaceutical industry. It can handle liquids with different boiling point ranges and meet different experimental needs.
