Product features

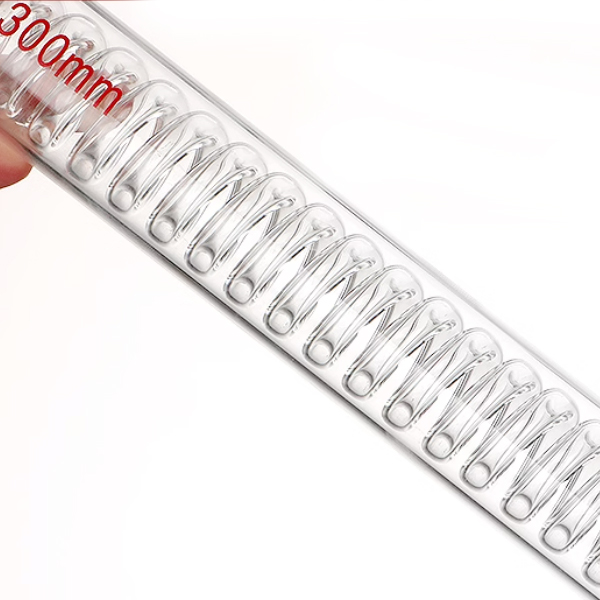

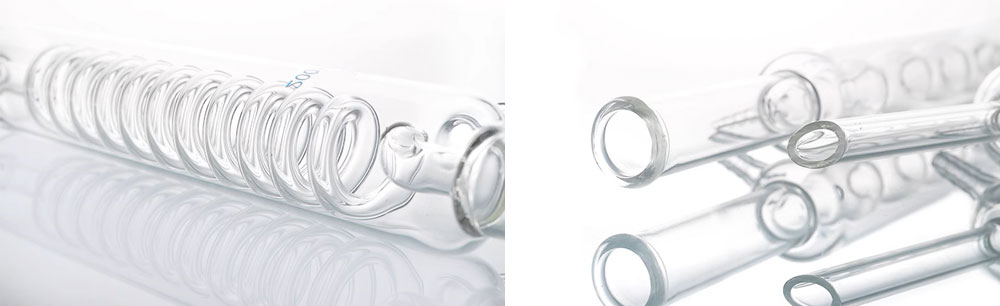

Condenser with coiled inner tube is usually made of high borosilicate glass material,which can withstand the erosion of various chemical substances and is not easily corroded or damaged. The connection between each part is tight and strong, and can withstand certain pressure and temperature changes without being easily damaged.
Condenser with coiled inner tube has a unique curved shape,the complex curved shape greatly increases the length and internal surface area of the condenser tube, thereby significantly improving the condensation efficiency. The curvature of the condenser tube is carefully designed to ensure smooth flow of steam in the tube, further improving the uniformity of heat exchange and condensation effect.
The connection method of the condenser with coiled inner tube is usually relatively simple, and it is convenient and quick to connect to experimental devices such as flasks and receiving bottles. Because its structure is relatively stable, it is not prone to shaking or shifting during operation, ensure the safety and stability of the experiment. With good transparency, experimenters can visually observe the condensation process of steam in the tube and the flow of liquid.
Condenser with coiled inner tube has low expansion rate, high temperature resistance, acid and alkali resistance, high strength, high hardness, high light transmittance, high chemical stability, fine workmanship, smooth surface, no burrs, no protrusions, and easy to connect hoses.
Product details
We can customize special specifications of condenser tubes according to customer requirements. If you order a large quantity, we can customize an exclusive logo for you. Please consult online customer service for specific details.
Product specifications
| Item NO. | Length of jacket（mm) | O.D.of upper tube（mm) | Cooling area ( dm2) | Length（mm) | PCS/CTN |
| 1215-200 | 200 | 18 | 2.3 | 350 | 48 |
| 1215-250 | 250 | 20 | 2.7 | 420 | 48 |
| 1215-300 | 300 | 20 | 3.3 | 480 | 48 |
| 1215-400 | 400 | 22 | 4.7 | 590 | 48 |
| 1215-500 | 500 | 24 | 7.0 | 710 | 48 |
| 1215-600 | 600 | 24 | 8.2 | 810 | 24 |
Product applications
Industrial Manufacturing: Condenser with coiled inner tubes are often used for equipment cooling in chemical, pharmaceutical, metallurgical, petrochemical and other industries.
Electronic technology:Condenser with coiled inner tubes can be used for cooling of computers, communication equipment,transformers etc.
Living area:Condenser with coiled inner tubes are also used for cooling of household appliances, such as air conditioners, refrigerators, freezers, etc.
Scientific research and education:Suitable for laboratories in scientific research, colleges and universities, petrochemical industry, pharmaceutical industry, medical and health, primary and secondary schools, etc., used in conjunction with distillation flasks and bent pipes on devices for distillation, fractionation or reflux. Used to condense steam and condensed liquid droplets.
